Stainless Steel Rope Mesh Is a Safe and Beautiful Architectural Cable Mesh.

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. The stainless steel rope construction is 7 × 7 or 7 × 19, and 1 × 7 and 1 × 19 are also available. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.

Stainless steel rope mesh has unique characteristics that allows design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.

In addition, the stainless steel rope has the advantages of light weight, strong and transparent, and can withstand heavy loads. It is now widely used as railing filling systems, zoo fences, tensile facades, safety nets and green wall systems.

Feature

Stainless steel provides the highest corrosion resistance.
It is hardly affected by almost all weather, such as sun, rain, snow, hurricanes, fog and so on.
Elegant and robust.
Light, robust yet transparent.
UV and weather resistant.
Flexible and pliable.
Climb resistant and prevents a secure foothold.
The minimum visual impact on views.
Recyclable.
Good price-benefit-ratio.
Easy installation and low maintenance.
Weave opening, meet any exact specification.

Specification

Material: AISI 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: silver or black oxide finish.
Structures of wire cable: 7 × 7, 7 × 19.
Cable diameter: 1.0–5.0 mm.
Diamond sizes: 20–200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: knotted or ferrule.

Stainless Steel Knotted Rope Mesh

Stainless Steel Ferrule Rope Mesh
Cable diameter: 1.0–5.0 mm.

Application

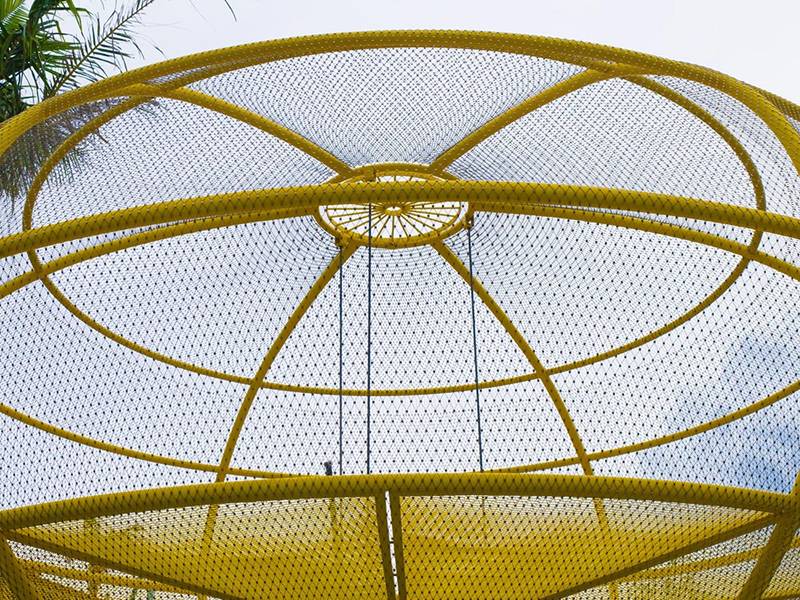

Stainless steel rope mesh can not only be used for indoor and outdoor decoration of buildings, but also widely used in other corrosive environment applications. It is used as balustrade in-fill, plant support, observation platform safety fence, tensile facade, zoo fences, divider, horizontal or vertical fall protection.
