Galvanized Steel Rib Lath Mesh with 4–20 mm Rib Depth for Plaster Bonding

Steel rib lath, also known as expanded ribbed lath, is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet. Its V-shaped ribs provide added stiffness and support, helping to maintain a uniform plastering depth across large areas.

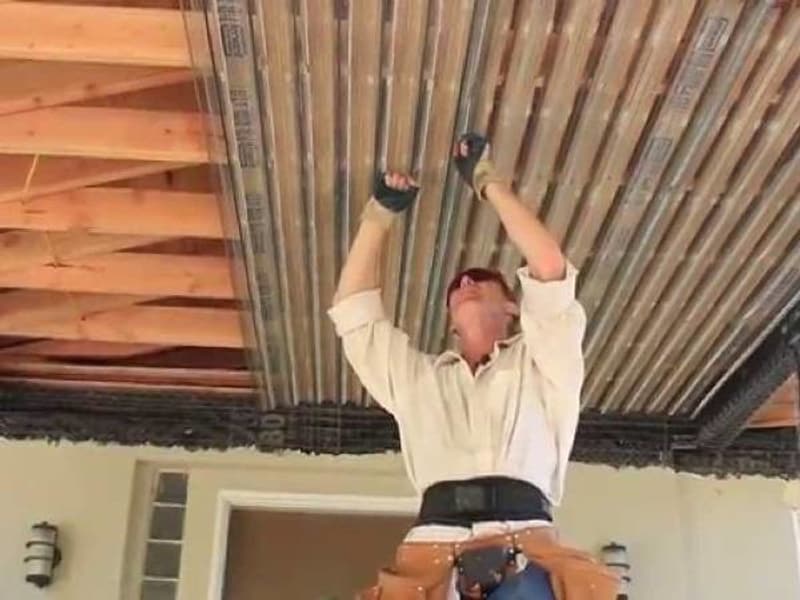

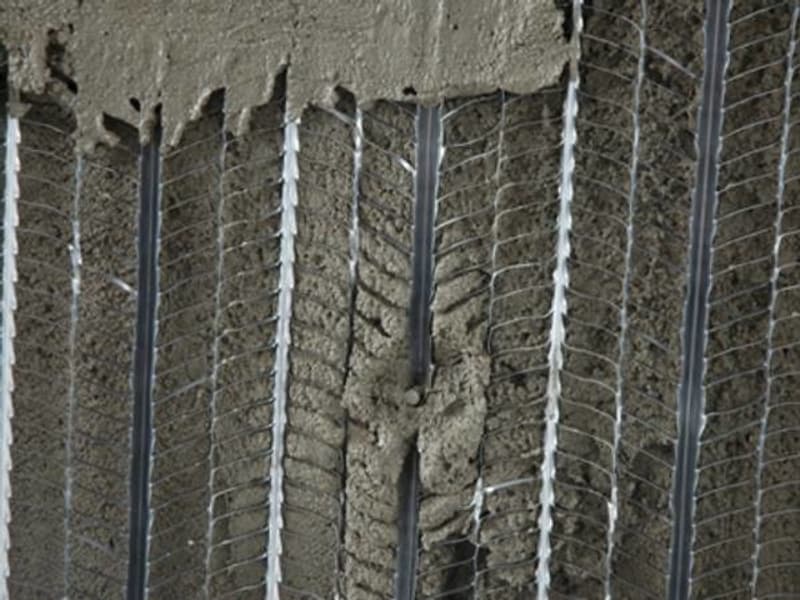

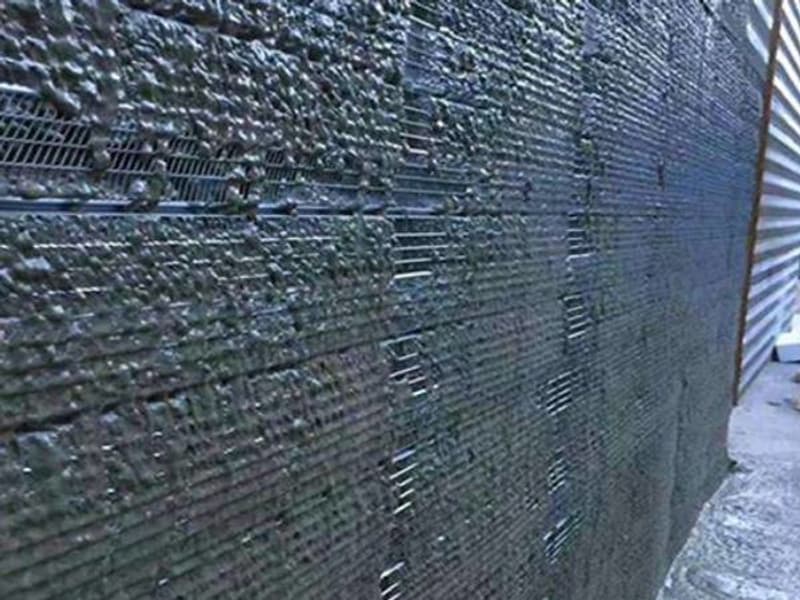

The open mesh structure allows plaster to key through the lath for a secure bond. Steel rib lath is used as a plaster base on walls and suspended ceilings in building construction.

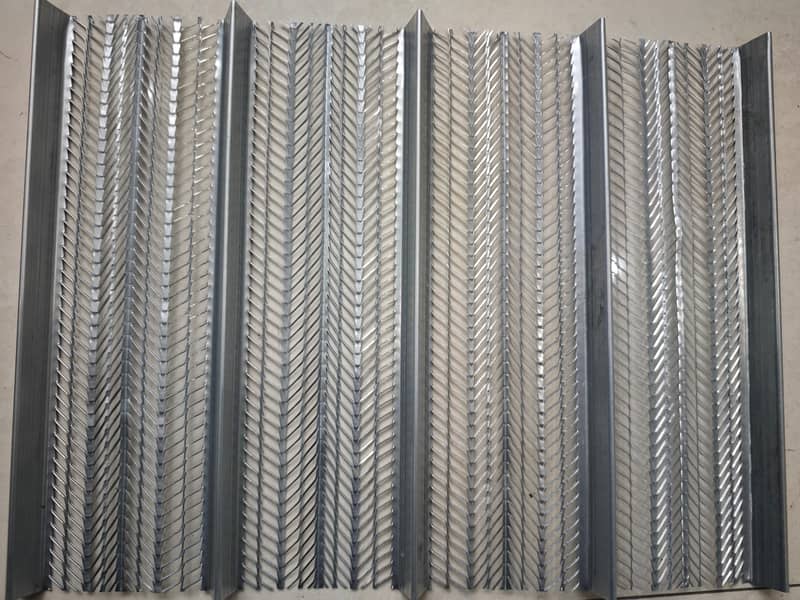

Steel rib lath sheet with V-shaped ribs and expanded mesh openings

Features

High stiffness and tensile strength for durability.
A keying surface that supports plaster adhesion.
A flexible structure that can be bent and shaped as needed.
V-ribs help maintain an even plastering depth.
Lightweight sheets are easy to cut, tie and nail to light steel framing.

Specifications

Material: Galvanized steel, stainless steel.
Surface treatment: Galvanized.

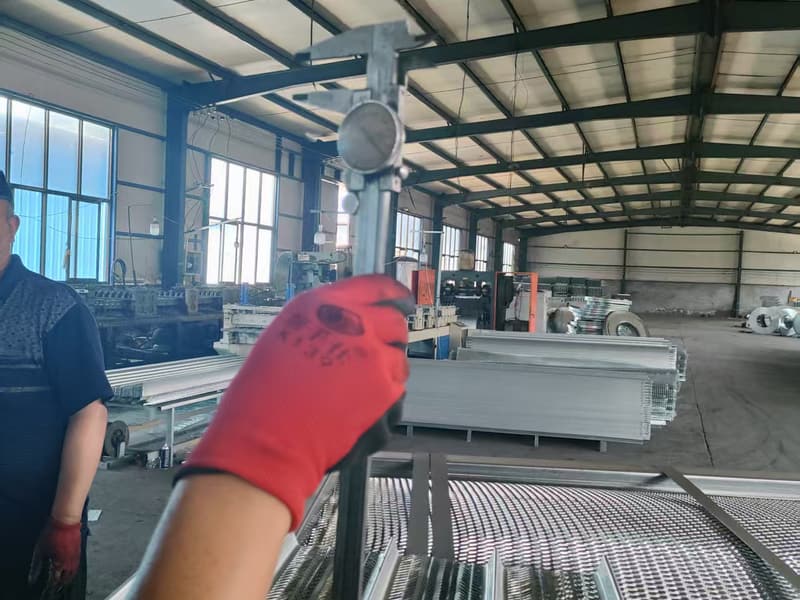

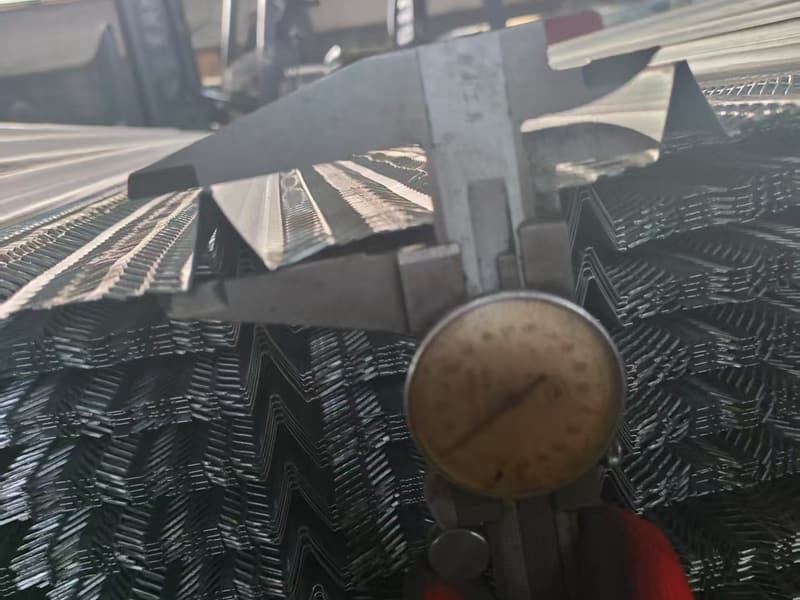

Rib depth: 4–20 mm.

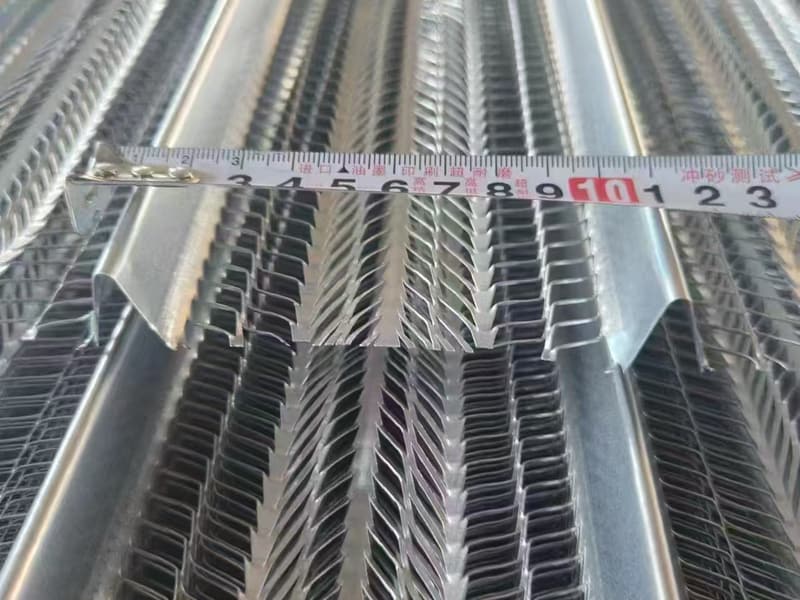

Rib distance: 75–150 mm.
Sheet width: 200–700 mm.
Sheet length: 1500–2500 mm.

Steel Rib Lath Specifications

Type	Code	Rib Depth	Rib Distance	Sheet Size
3/4" High Rib Lath (High Rib Stay Form)	CT-HR	3/4"	98 mm	27" × 97"
High Rib Variants	CT-HR3	19–20 mm	100 mm	200 mm width
High Rib Variants	CT-HR4	19–20 mm	100 mm	300 mm width
High Rib Variants	CT-HR5	19–20 mm	100 mm	400 mm width
High Rib Variants	CT-HR6	19–20 mm	100 mm	500 mm width
High Rib Variants	CT-HR7	19–20 mm	100 mm	600 mm width
High Rib Variants	CT-HR8	19–20 mm	100 mm	700 mm width
3/8" Middle Rib Lath	CT-MRB5	10 mm	150 mm	600 × 2200–2500 mm
3/8" Middle Rib Lath	CT-MRB7	10 mm	100 mm	600 × 2200–2500 mm
3/8" Middle Rib Lath	CT-MRB9	10 mm	75 mm	600 × 2200–2500 mm
1/8" Flat Rib Lath	CT-FRB5	4 mm	150 mm	600 × 2200–2500 mm
1/8" Flat Rib Lath	CT-FRB7	4 mm	100 mm	600 × 2200–2500 mm
1/8" Flat Rib Lath	CT-FRB9	4 mm	75 mm	600 × 2200–2500 mm
