Expanded Metal Fence for Highway, Garden, Isolation Boundary

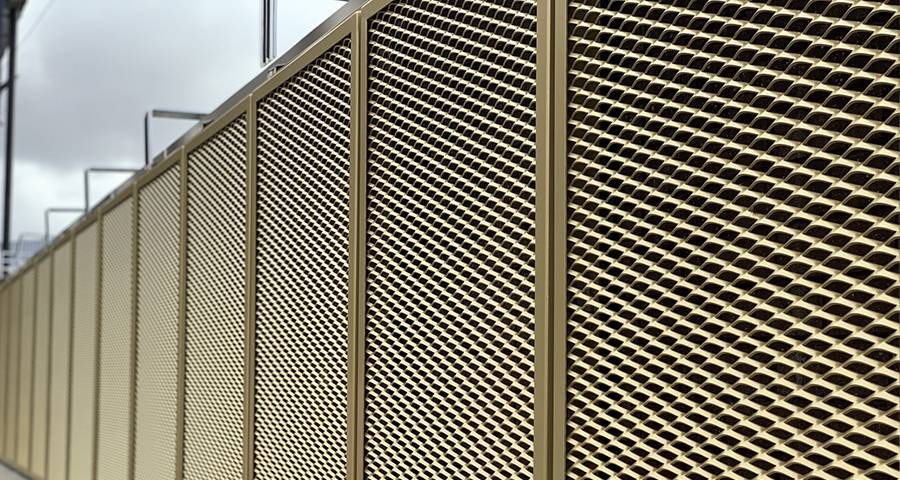

Golden expanded metal safety fence is used in government agencies

Framed expanded metal safety fence installed on low wall

Expanded metal safety fence installed on the side of the highway

Black expanded metal mesh fence is installed along the residential community.

Outdoor Stair expanded metal railing

Expanded metal fence with barbed wire on top installed on the side of the road

Expanded metal fence with barbed wire on top installed along the side of the road

Expanded metal fencing with the purpose of preventing people from entering a prohibited area and safeguarding, appropriate for highway, garden, isolation boundary, private territory, railway nearby, industrial area and so on.

Expanded metal mesh is different from other safety fence products on the market (chain link fence and welded wire fence), it is made of one-piece solid steel plate by slitting and stretching. This special construction makes it so strong that intruders cannot cut it with common tools.

Expanded metal security fencing is able to used alone, also permits adding barbed wire or razor wire, thus greatly deter climbers when they decided to climb over the fencing. Expanded metal fencing provides natural air flow and water flow. Generally, to prolong the service life, expanded metal fence coated with different protective coating.

Specification

Material: aluminum, low carbon steel, stainless steel.
Hole Patterns: diamond, hexagon, square.
Fitting: barbed wire, razor wire.
Post: round or square.
Types of expanded metal: regular (standard) expanded metal and flattened expanded metal.
Surface treatment: galvanized and PVC coating.
Color: silver, green, black, blue, etc.
Standard: GB 2694.

Specification of Expanded Metal Fence
Description	1⁄2"–13 R	1⁄2"–13 R (188)	3⁄4"–9 R	3⁄4"–9 F	1"–7 R (240)	1⁄2"–6 R
Width of panel (ft.)	3–6	3–6	3–6	3–6	3–5	3–5
Height of panel (ft.)	6–12	6–12	6–12	6–12	6–12	6–12
Diamond dimensions (in.) SWD by LWD	0.500 by 1.20	0.500 by 1.20	0.923 by 2.00	0.923 by 2.10	1.00 by 2.40	1.330 by 3.00
Open area	57%	25%	68%	63%	52%	63%
Strand thickness (in.)	0.092	0.09	0.134	0.120	0.170	0.198
Strand width (in.)	0.096	0.188	0.150	0.164	0.240	0.203
Weight per ft² (lbs)	1.47	2.82	1.80	1.71	3.50	2.50
Weight galvanized (oz/ft²)	1.73	3.1	1.95	1.86	3.70	2.73
Note: R: Raised expanded metal. F: Flattened expanded metal.

Specification of Expanded Metal Panel
Code	Thickness of panels	SWD	LWD	Thickness of strand	Length of panel	Width of panel
2018	2.0 mm	18 mm	50 mm	2.03 mm	1.9–3.0 m	1.5–2.5 m
2022		22 mm	60 mm	2.47 mm
2029		29 mm	80 mm	3.26 mm
2036		36 mm	100 mm	4.05 mm
2044		44 mm	120 mm	4.95 mm
2544	2.5 mm	29 mm	80 mm	3.26 mm
2535		35 mm	100 mm	4.05 mm
2544		44 mm	120 mm	4.95 mm
3036	3.0 mm	36 mm	100 mm	4.05 mm
3044		44 mm	120 mm	4.95 mm
3055		55 mm	150 mm	4.99 mm
4024	4.0 mm	24 mm	60 mm	4.5 mm
4032		32 mm	80 mm	5.0 mm
4040		40 mm	100 mm	6.0 mm
5024	5.0 mm	24 mm	60 mm	6.0 mm
5032		32 mm	80 mm	6.0 mm
5040		40 mm	100 mm	6.0 mm
5056		56 mm	150 mm	6.0 mm
