Razor Wire Prison Fence Stop Inmates Escaping and Intruders Entering

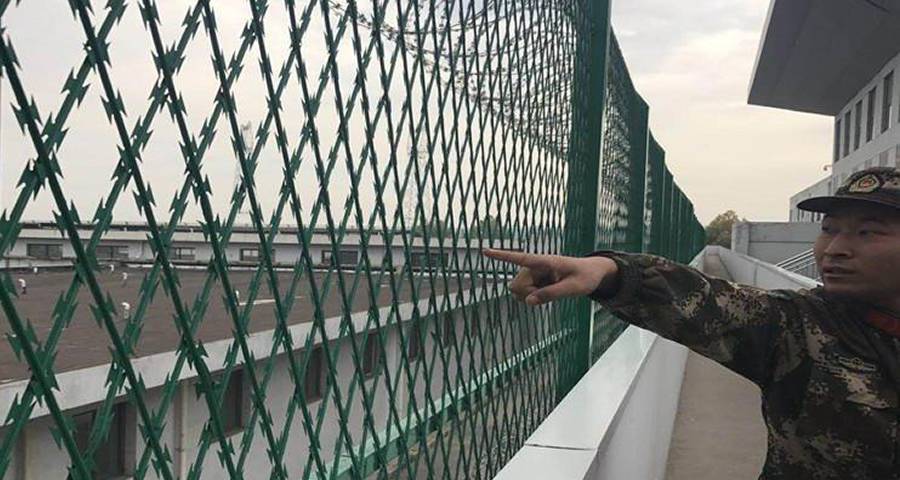

Concertina wire and welded razor mesh combined installation for prison fencing

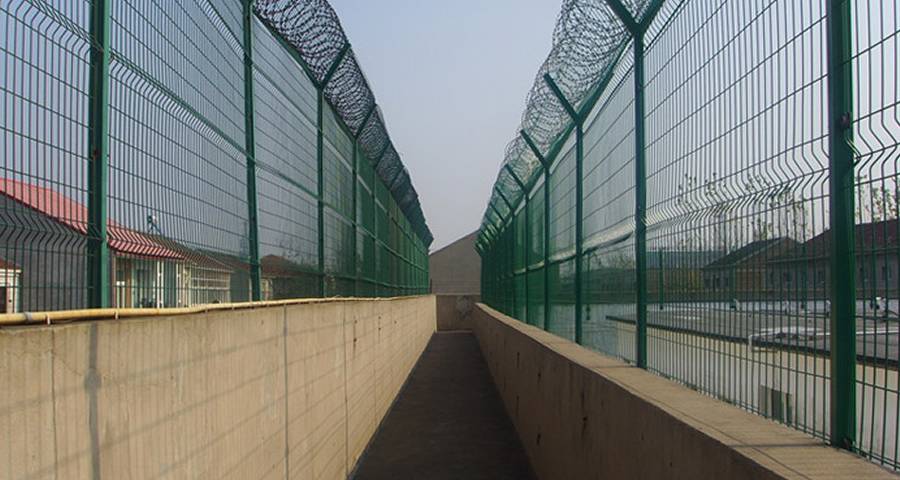

Razor wire mounted on top of welded wire fence for prison fence

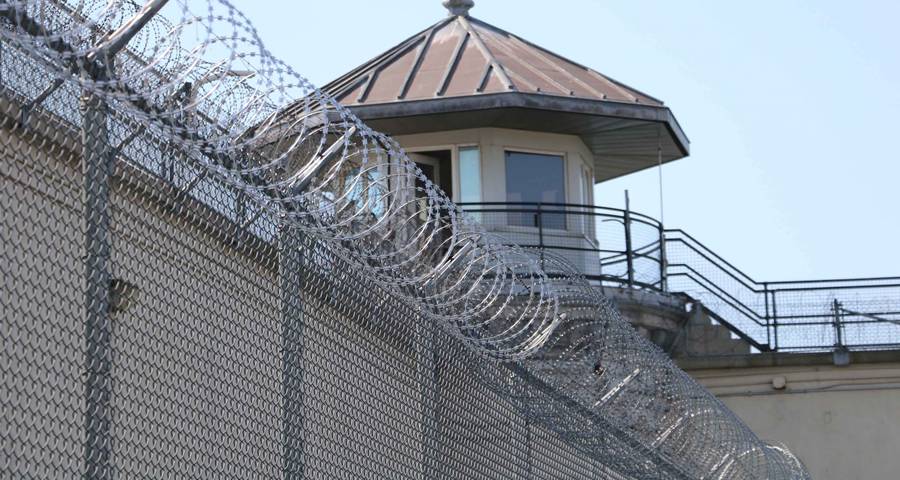

Razor wire mounted on top of chain link fence for prison fence

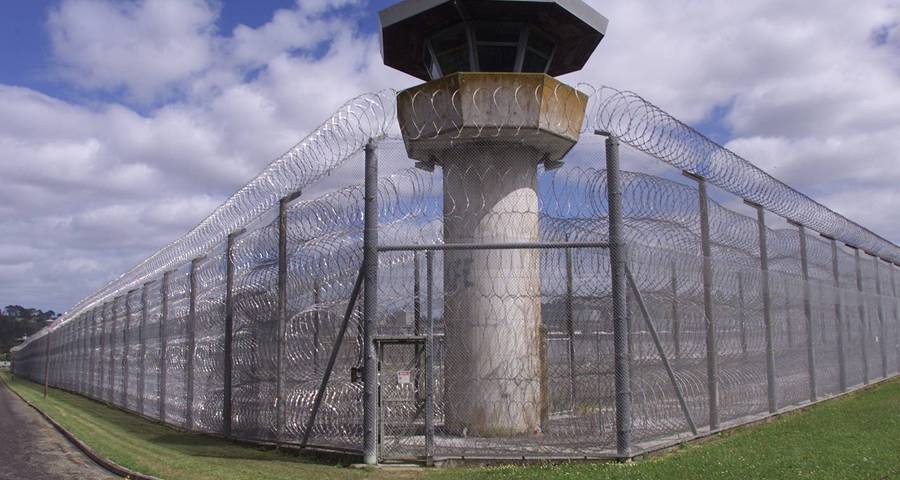

Razor wire installed on top and inside of chain link fence for prison fencing
Concertina wire and welded razor mesh combined installation for prison fencing
Razor wire mounted on top of welded wire fence for prison fence
Razor wire mounted on top of chain link fence for prison fence
Razor wire installed on top and inside of chain link fence for prison fencing
Razor wire prison fence, as the name suggests, is razor wire used for prison fences, and its requirements are high security protection. It can prevent prisoners from escaping, as well as prevent unauthorized people from breaking in. The razor wire has a sharp blade, the blade can stab people who climb over the guardrail, and the deterrent is very strong, therefore is very suitable for prison guardrails. At the same time, it can also be used for other places that require high security protection, such as the enclosure protection of outposts, detention centers, border defenses, military bases, trench enclosures, etc.
Razor wire is a sharp product made up of sharp blades edge and a high tensile strength strand in the central. Razor wire prison fence is either plain or spiral concertina wire. It can be used as a fence in prison area alone, also combines with other fences for example chain link fence welded wire fence or welded razor mesh fence. In order to prolong it service life, razor wire prison fence is made from stainless steel wire or coated with zinc.
Advantage
Strong deterrent effect.
High security and not easy to pass through.
Strong protective effect, difficult to cut by tools.
Much sharper than barbed wire.
High tensile strength.
Mainly used in high security level areas.
High visibility and easy patrol inspection.
Recyclable.
Specification
Material: Stainless steel, steel.
Type: Flat wrap razor wire, spiral razor wire, concertina razor wire, line form razor wire, welded razor mesh.
Coil type: Double coil, single coil.
Height of a roll: 900–1000 mm.
Length of barb: 10–15 mm (short barb), 20–25 mm (medium bard), 60–66 mm (long barb).
Surface treatment: Galvanized, PVC coating.
Color: Green, silver, white, etc.
Package: Water-proof paper inside, woven plastic bag outside; lastly packed in cartons.
Table-1: Specification of Razor Wire
Table-1: Specification of Razor Wire
Item
Thickness (mm)
Wire dia. (mm)
Length (mm)
Width (mm)
Spacing (mm)
BTO-10
0.5 ± 0.05
2.5 ± 0.1
10 ± 1
13 ± 1
26 ± 1
BTO-12
0.5 ± 0.05
2.5 ± 0.1
12± 1
15 ± 1
26 ± 1
BTO-18
0.5 ± 0.05
2.5 ± 0.1
18 ± 1
15 ± 1
33 ± 1
BTO-22
0.5 ± 0.05
2.5 ± 0.1
22 ± 1
15 ± 1
34 ± 1
BTO-28
0.5 ± 0.05
2.5 ± 0.1
28 ± 1
15 ± 1
45 ± 1
BTO-30
0.5 ± 0.05
2.5 ± 0.1
30 ± 1
18 ± 1
45 ± 1
CBT-60
0.6 ± 0.05
2.5 ± 0.1
60 ± 2
32 ± 1
100 ± 2
CBT-65
0.6 ± 0.05
2.5 ± 0.1
65 ± 2
21 ± 1
100 ± 2
Table-2: Specification of Spiral Razor Wire
Table-2: Specification of Spiral Razor Wire
Outside diameter
Circles quantity
Length to be covered
450 mm
56
8–9 m (3 clips)
500 mm
56
9–10 m (3 clips)
600 mm
56
10–11 m (3 clips)
600 mm
56
8–10 m (5 clips)
700 mm
56
10–12 m (5 clips)
800 mm
56
11–13 m (5 clips)
900 mm
56
12–14 m (5 clips)
960 mm
56
13–15 m (5 clips)
980 mm
56
14–16 m (5 clips)
Table-3: Specification of Welded Razor Mesh
Table-3: Specification of Welded Razor Mesh
Core Wire
Razor Strip (sheet)
Square Razor Mesh Size
Diamond Razor Mesh Size
2.50±0.05 mm High Tensile Galvanised Wire
Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L
0.50±0.05 mm Galvanised sheet strip razor
Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L
50 × 150 mm
75 × 150 mm
75 × 150 mm
100x150 mm
150 × 300 mm
Other Mesh Sizes According to Customers' requirement
